4-Port Target Selector
- Model #: DM-14.4X18
- Last modification: Jun/9/2025
contact us about this product

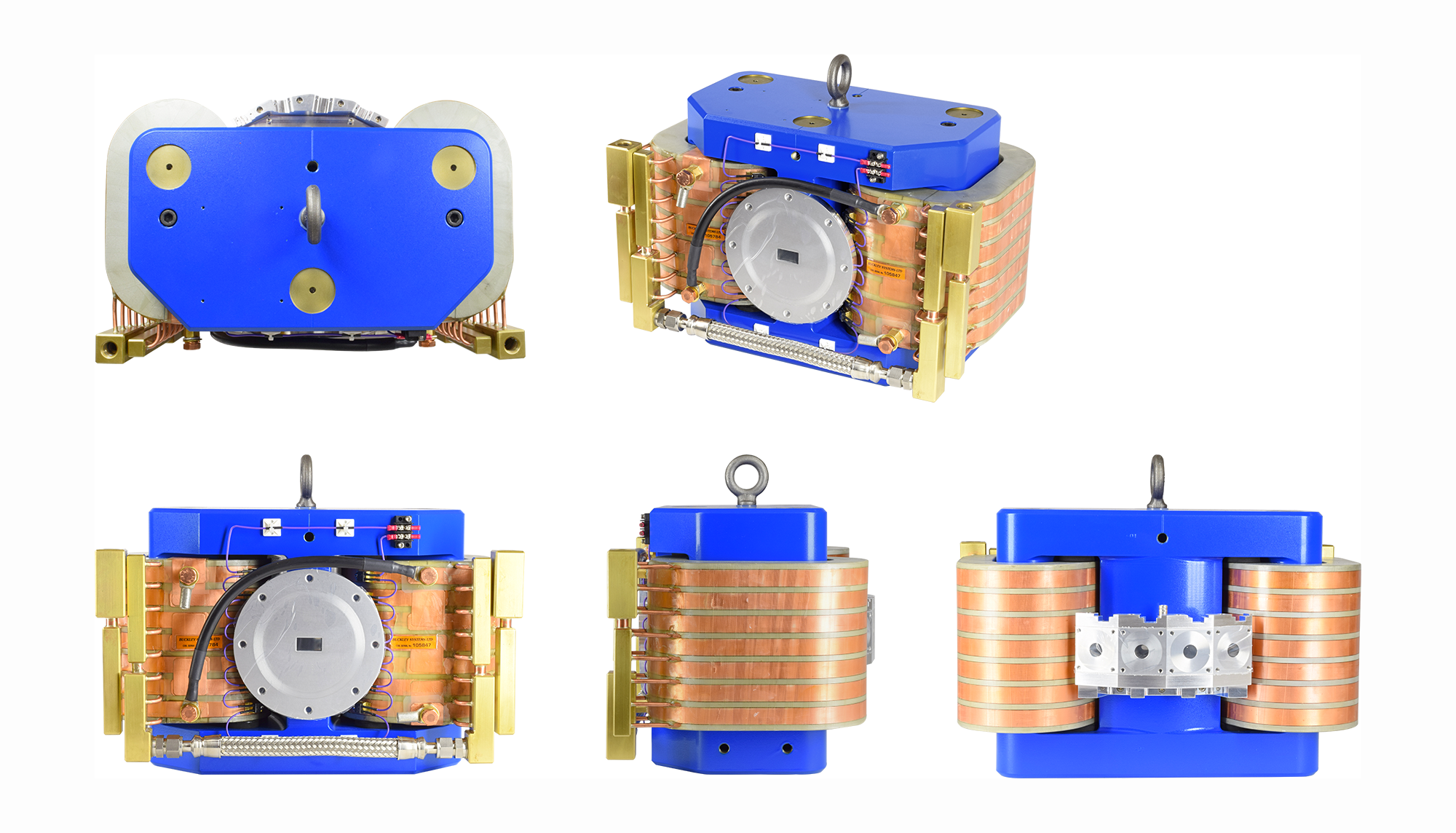

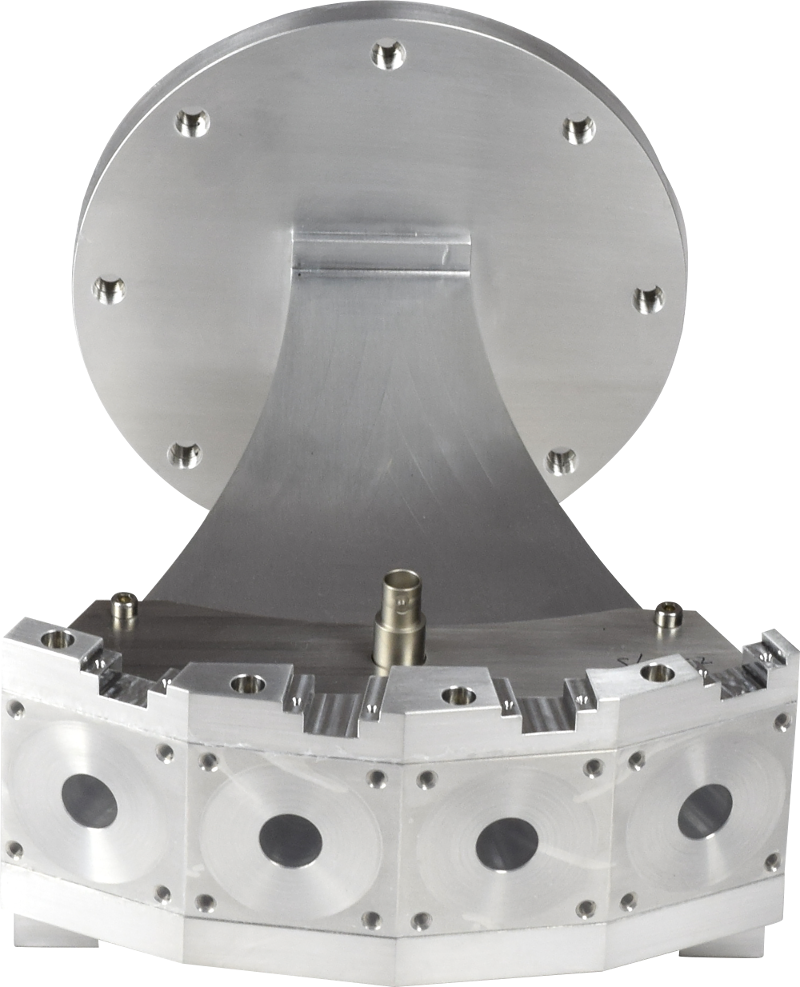

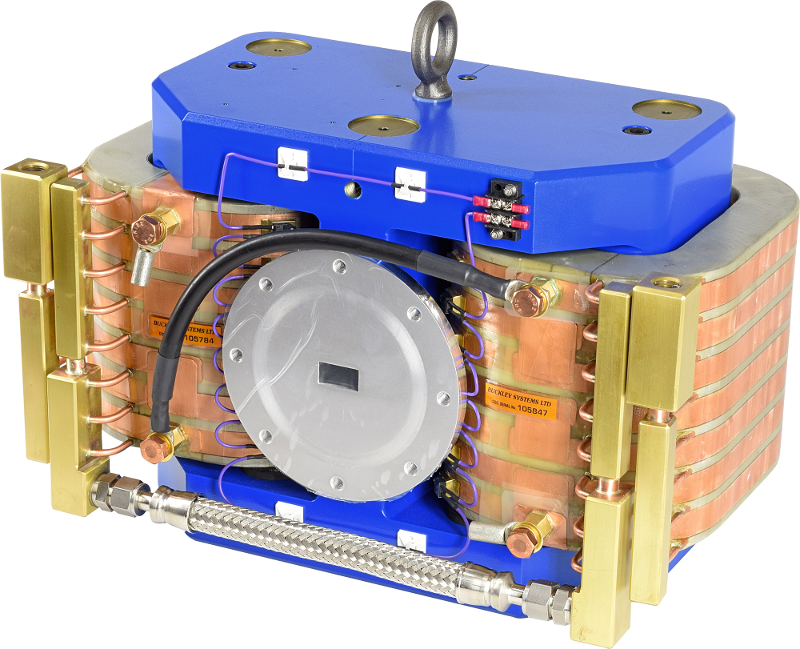

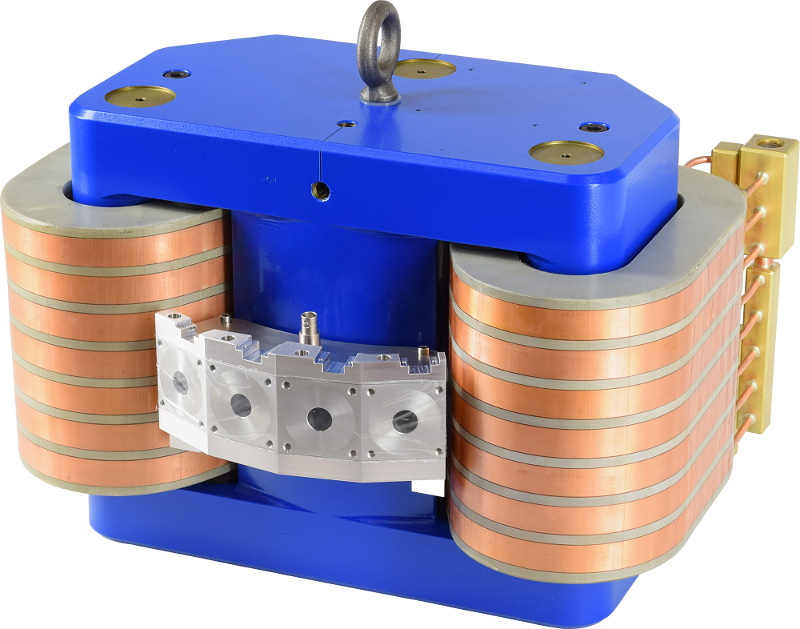

A dipole magnet designed to direct a charged particle beam to one of four output directions. Intended for use with four targets, the device operates as a magnetic target selector. Included in the output of the vacuum chamber is a beam collimator, with a single beam current readback.
- Magnet Type: Dipole
- Bend Angles: ±27°, ±9°
- Bend Radaii: 466.9 mm, 1400.6 mm
- Clear Gap: 14.5 mm
- Effective Length: 220 mm
- Mass: 172 kg
- Max Current: 130 A
- Max Voltage: 22.1 V
- Max Resistance: 0.17 Ohms
- Pole Tip Magnetic Field @ Max Current: 1.1 T
- Magnet Inductance: 90 mH
- Cooling Water Flow: 3.0 L/min
- Inlet Water Temperature: < 20°C
- Water Pressure Drop: 20.5 kPa
- ΔT @ Max Current: ~24°C
- Thermal Switch Activation Temperature: 70°C
