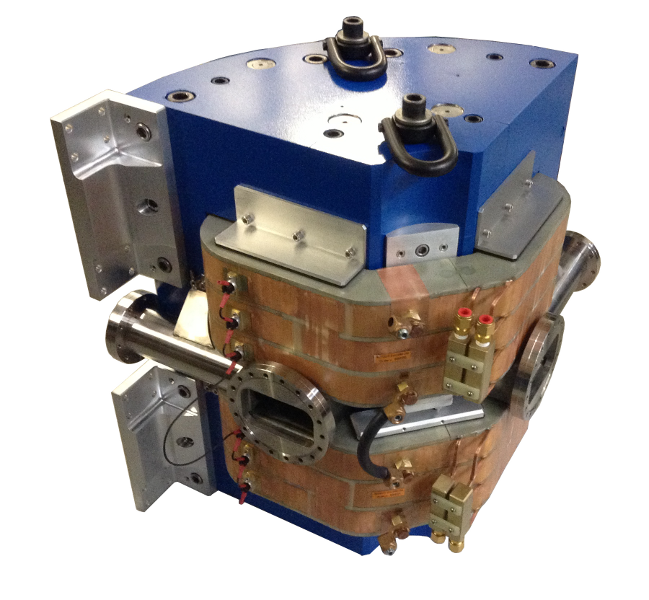

90° Bender Magnet
- Model #: DM-54.90
- Last modification: Jun/9/2025
contact us about this product
- Magnet Type: Dipole
- Bend Angle: 90°
- Bend Radius: 191 mm
- Clear Gap: 49 mm
- Pole Gap: 54 mm
- Effective Length: 300 mm
- Insertion Length: 512 mm
- Mass: 1067 kg
- Pole Tip Magnetic Field @ Max Current: 1.3 T
- Max Current: 125 A
- Max Voltage(Hot): 33 V
- ΔT @ Max Current: ~14°C
- Cooling Water Flow: 7 l/min (3.5 l/min/coil, parallel)
- Inlet Pressure: ~14.5 psi
- ΔP/coil: ~4 psi
- Thermal Swtiches Activation Temperature: 70°C
- Flanges: 6.75" Conflat Entrance/Exit
D-Pace's standard 90° Bend dipole magnet for charged particle beams can be purchased as:
- magnet only

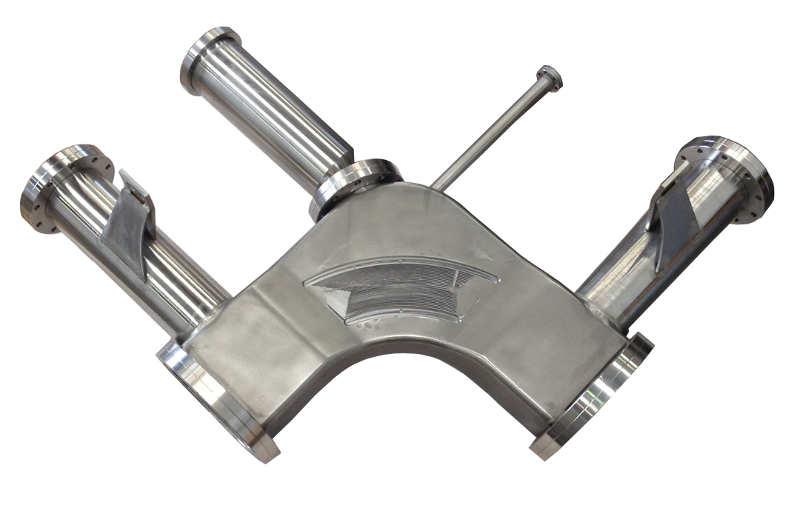

- with standard SS316 vacuum box with 49 mm clear gap in the non-bend plane, 0° thru port, and ports for entrance and exit collimators included

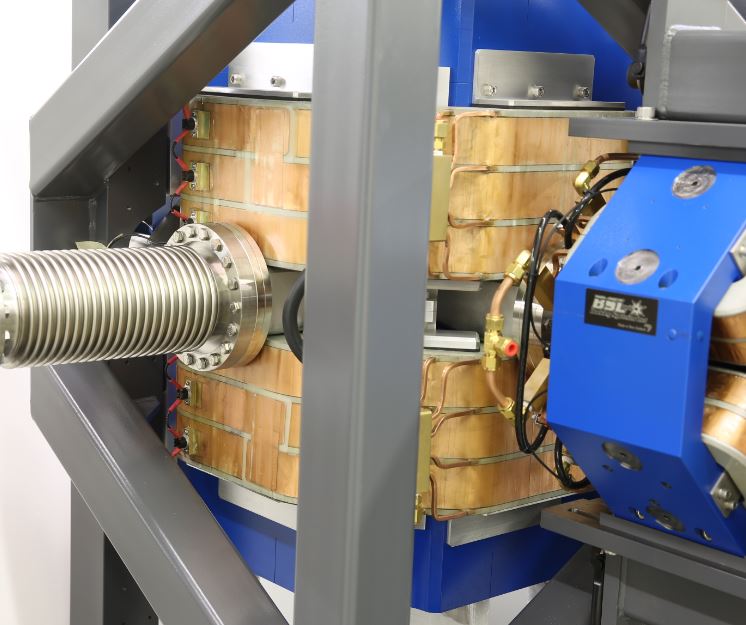

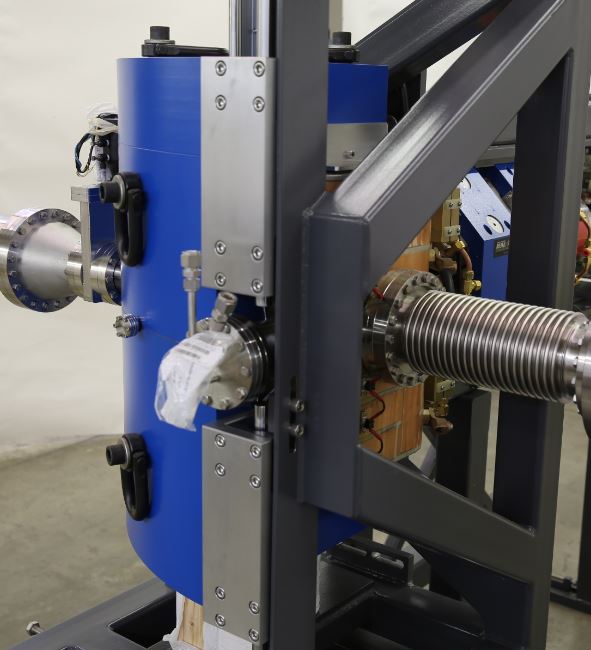

- with stand included
- with power supply
